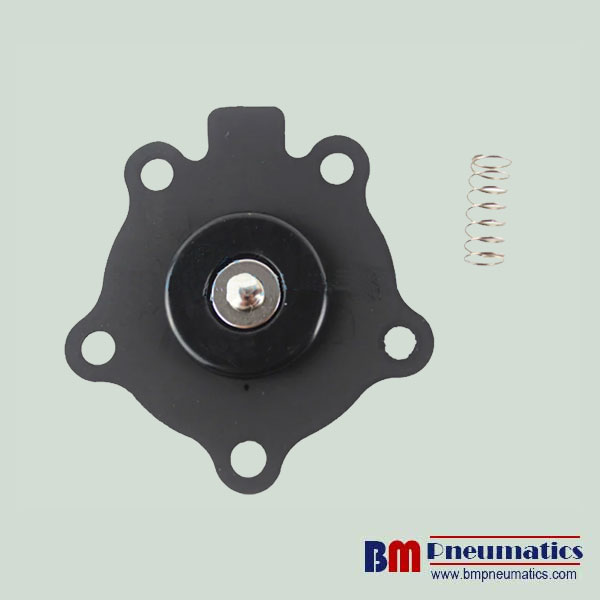

96875 238864 3/4” NBR Diaphragm Repair Kits
The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above Pulse Valve Diaphragm is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised, air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.
Reference No:Â
|
Integral Pilot
Pulse Valve
Model No
|
Remote Pilot
Pulse Valve
Model No
|
Pulse Valve
Port Size
|
Diaphragm Model
|
Diaphragm
Model
(10 pack)
|
Diaphragm Material
|
|
–
|
8353C033
|
3/4”
|
96875
|
238864
|
NBR diaphragm
|
|
–
|
8353C030
|
3/4”
|
96875
|
238864
|
NBR diaphragm
|
|
–
|
8353C004
|
3/4”
|
96875
|
238864
|
NBR diaphragm
|
|
–
|
8353C035
|
1”
|
200262
|
238866
|
HYTREL diaphragm
|
|
8353G041
|
–
|
1”
|
316563
|
238866
|
HYTREL diaphragm
|
|
8353G006
|
–
|
1”
|
300144
|
–
|
CR diaphragm, PA disc
|
|
8353G005
|
–
|
1-1/4”
|
300144
|
–
|
CR diaphragm, PA disc
|
|
8353G001
|
–
|
1-1/2”
|
300144
|
–
|
CR diaphragm, PA disc
|
|
–
|
8353H038
|
1-1/2”
|
276886
|
238870
|
HYTREL diaphragm
|
|
8353J039
|
–
|
1-1/2”
|
322108
|
238870
|
HYTREL diaphragm
|
|
8353G061
|
–
|
1-1/2”
|
316297
|
–
|
NBR diaphragm, PA disc
|
|
–
|
8353A062
|
1-1/2”
|
276884
|
–
|
NBR diaphragm, PA disc
|
|
8353G002
|
–
|
2”
|
300145
|
–
|
CR diaphragm, PA disc
|
|
–
|
8353 048
|
2”
|
256802
|
256797
|
CR diaphragm
|
|
8353G050
|
–
|
2”
|
316029
|
256797
|
CR diaphragm
|
|
8353G007
|
–
|
2 1/2”
|
176878
|
–
|
CR diaphragm, PA disc
|
|
8353G008
|
–
|
3”
|
176878
|
–
|
CR diaphragm, PA disc
|

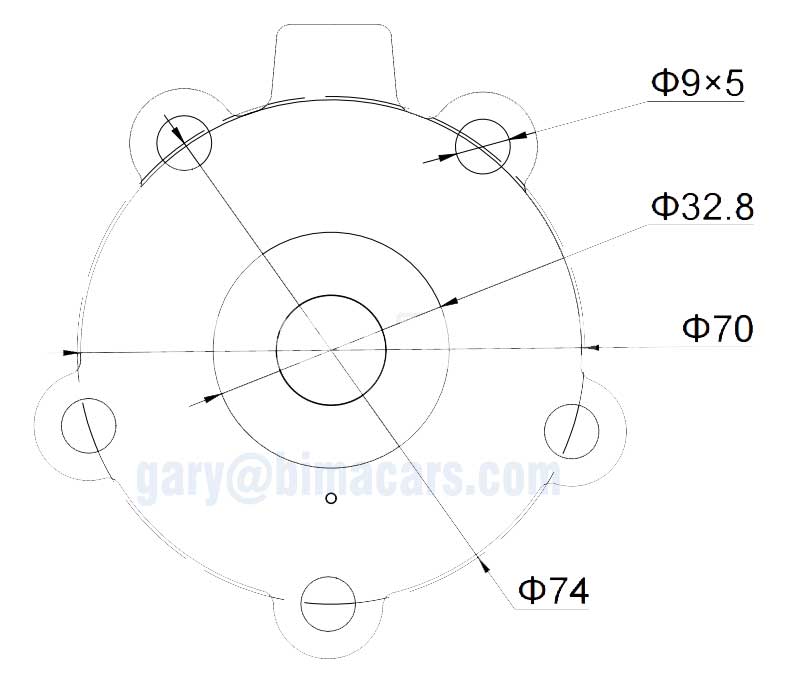

96875 (238864) Dimension:Â
